FOS's LED lighting drivers are designed to provide complete, outdoor/indoor, installation-ready DC power for any LED lighting application.
LED Driver Configurations Guide
However, to maximize LED lighting system efficiency and reliability, the power source - the lifeblood of the LED - must be equally energy efficient. Our LED power supply series are designed with the latest in switched-mode technology, maximizing both efficiency and reliability. Finally, our series devices are limited power sources which use the latest PFC topology, delivering efficiencies up to 87%.
|
Name
|

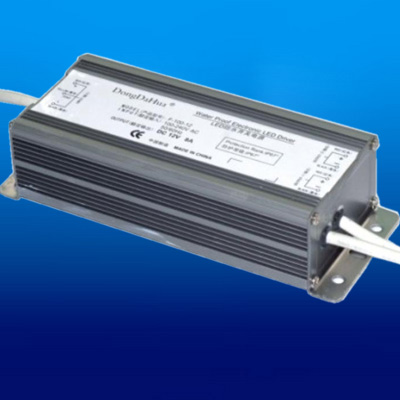

LED Power Supply(Waterproof)
|
|
|
|
Input Specifications
|
Input Voltage
|
AC90V-264V
|
|
|
Input Frequency
|
47-63HZ
|
||
|
Input Surge
|
Cold:20A@120VAC 40A@230VAC
|
||
|
Output Specifications
|
Adjustable Range
|
±10%
|
|
|
Star Time
|
≦1S(230V Input,Io=100%)
|
||
|
Keep Time
|
≧20mS(230V Input,Io=100%)
|
||
|
Voltage Regulation
|
(Full Road) ≦ 0.5%
|
||
|
Safety standards
|
GB4943、UL60950-1，EN60950-1
|
||
|
EMC Standard
|
GB9254、EN55022 Class A
|
||
|
Size
|
180X69X43mm
|
||
|
Material
|
Aluminum construction
|
||
|
Weight
|
0.87kgs/Pcs
|
||
Products Feature:
|
Model
|
Ouput Specification
|
Ripple & Noise
|
Efficiency
|
|
|
28161060-3.3
|
3.3V
|
20A
|
50mV
|
66%
|
|
28161060-5
|
5V
|
20A
|
50mV
|
76%
|
|
28161060-9
|
9V
|
11A
|
70mV
|
78%
|
|
28161060-12
|
12V
|
8.5A
|
100mV
|
80%
|
|
28161060-15
|
15V
|
7A
|
100mV
|
80%
|
|
28161060-24
|
24V
|
4.5A
|
100mV
|
80%
|
|
28161060-28
|
28V
|
3.6A
|
100mV
|
80%
|
|
28161060-36
|
36V
|
2.8A
|
100mV
|
80%
|
|
28161060-48
|
48V
|
2.3A
|
100mV
|
82%
|
Remarks:
● Input 90～264V, 50/60Hz;
● Output 3.3V, 5V, 9V, 12V, 15V, 24V, 28V, 36V, 48V are available, pls contact us to get details
● Delivery: 7 to 25 days after order confirmed, according as order qty.
● MOQ: 100pcs
● Payment Term: By T/T 100% Prepay or L/C according as negotiate if large amount
