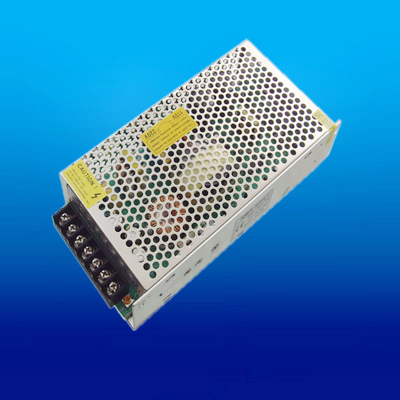

LED-power-supply-200W





























FOS's LED lighting drivers are designed to provide complete, outdoor/indoor, installation-ready DC power for any LED lighting application.
 LED Driver Configurations Guide
 However, to maximize LED lighting system efficiency and reliability, the power source - the lifeblood of the LED - must be equally energy efficient. Our LED power supply series are designed with the latest in switched-mode technology, maximizing both efficiency and reliability. Finally, our series devices are limited power sources which use the latest PFC topology, delivering efficiencies up to 87%.

Model
DC Output
Load Regul.
R&N
EFF.
26100200-5
5V
40A
1%
50mv
79%
26100200-12
12V
16.6A
0.5%
100mv
80%
26100200-15
15V
13.5A
0.5%
100mv
80%
26100200-24
24V
8.3A
0.5%
200mv
82%
26100200-48
48V
4.2A
0.5%
240mv
87%

3~48V DC output all available

 ● Input 90264V, 50/60Hz;
● Output 3.3V, 5V, 9V, 12V, 15V, 24V, 28V, 36V, 48V are available, pls contact us to get details
● Delivery: 7 to 25 days after order confirmed, according as order qty.
● MOQ: 100pcs
● Payment Term: By T/T 100% Prepay or L/C according as negotiate if large amount.
●Lead Time of LED flood light: 10 - 25 days
Feature:
·Universal AC Input/Full Range
·High Reliability
·Approvals:ETS/EMC/CE
·100% Full Load Burn- In Test
·Protections:Overload/Over Voltage/Short Circuit

·2 Years Warranty
